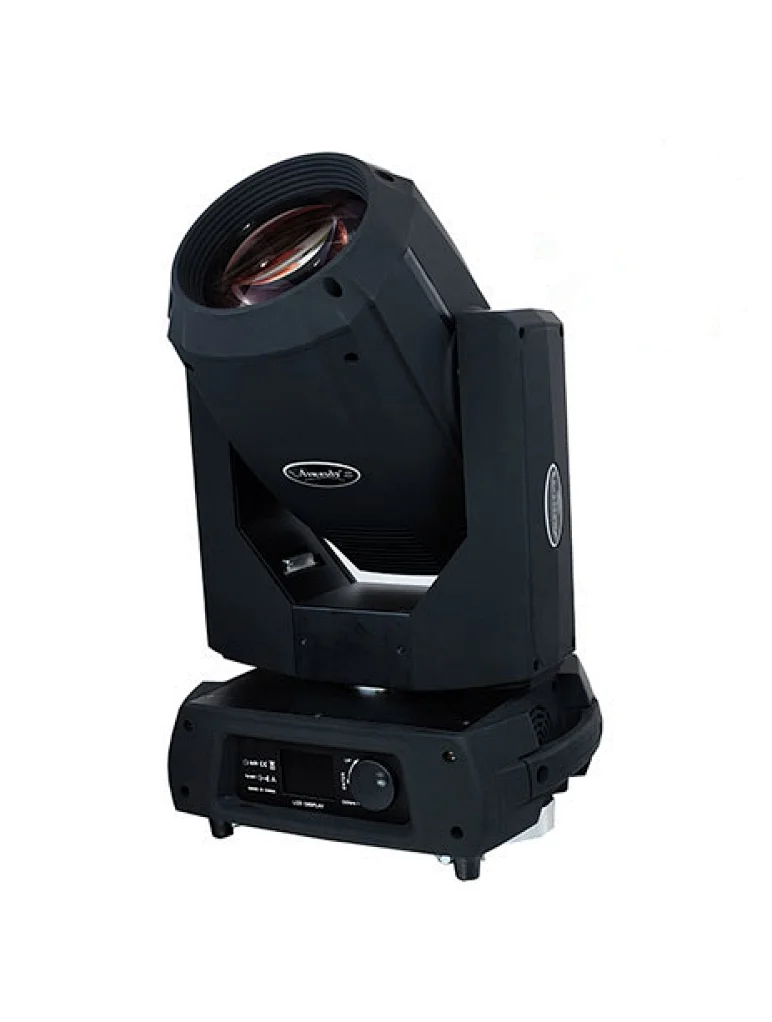

A-2390A beam light (CMY with 7 color)
A-2390A
Quantity
Input voltage: AC100—240V 50 HZ/ 60HZ audio plug hand in hand (standard)
Rated power: 520W
Light source: Osram 371 bulb
Color temperature: 8000K
Lamp life: 1500H
Control mode: international standard DMX512 protocol, 3-core interface, with slave, host and self-propelled mode
Channel mode: 20 channels
Optical lens: high precision multi-group cemented lens
Optical angle: 3.3°, beam diameter 145mm, the beam is thick and full and transparent
Horizontal and vertical: use noise-free three-phase motor, fast speed, smooth operation and accurate positioning
Rotation angle: 540 degrees horizontally, 240 degrees vertical (16bit precision scanning)
Scanning speed: 2.1 seconds horizontally, 1.1 seconds vertical
Color mixing system: CMY stepless color mixing system, CMY has macro function
Color plate: 1 fixed color, 13 colors + white light (including 3200K and 5600K color temperature film), with half color and running water function
Pattern plate: 1 fixed pattern plate with 13 fixed patterns (where the pattern plate has dynamic pattern effect) + white light with water and dither function
Effect wheel: a 48-cell prism, a 24-cell prism, two prisms can rotate in both directions, with dynamic effect, when the prism is superimposed, it can form 72 clear sharp beams, the prism has macro function, one atomization, rainbow 7 color effect
Strobe: Two-chip strobe 1-3 times / sec, adjustable speed, when the strobe is off, the bulb will reduce power
Dimming: 0—100% linear dimming
Focusing: 0-100% linear focus
Display mode: LCD touch color screen + twist encoder, can switch between Chinese and English, external USB interface can be upgraded program, built-in long-life rechargeable lithium battery, long press the encoder for 5 seconds without power supply Function settings, macro function settings
Working environment: ~20°-40°
Cooling: Axial fan reinforced ventilation cooling
Protection level: IP20
Safety device: with temperature control overheat protection
Net weight: 19KG
Gross weight: 24.5KG
