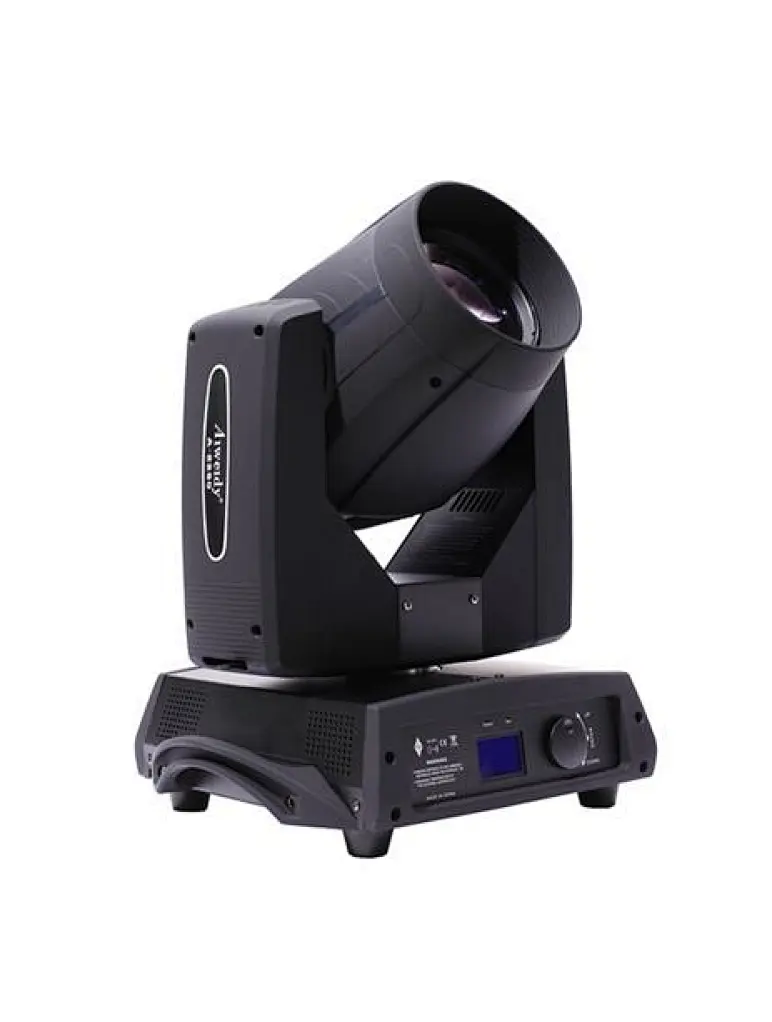

7R 230W beam
A-2230
Quantity
● input voltage: AC100V-240V 50 / 60Hz
● rated power: 380W
● light source: 7R 230W
● color temperature: 8000K
● bulb life: 2000h
● control mode: Standard DMX512 protocol, 3 / 5-core interface
● channel: 16 channels
● rotation angle: horizontal 540 °, vertical 270 ° (16bit precision scanning) electronic error correction
● scanning speed: 2.1S horizontally and 1s vertically
● color dial: 1 fixed color dial, including 14 color chips + white light, with half color function
● pattern disc: 1 fixed pattern disc, including 17 pattern effects + white light
● effect wheel: 1 rotatable 8 prism with shaking effect and atomization function
● stroboscopic: double chip stroboscopic 0-13 times / s, with adjustable speed
● dimming: 0-100% linear dimming
● focusing: 0-100% linear focusing
● beam angle: 0-4 °
● display mode: LCD digital display
● working environment: 0-40 ℃
● protection grade: IP20, and the power supply complies with Ge 20 / 22; Comply with GB 7000.15-2000 standard
● cooling: axial fan is used to enhance ventilation and cooling
● safety device: with temperature control and overheating protection, automatic power-off protection in case of overheating or cooling system failure
● net weight: 19 kg gross weight: 21.6kg
● package size: 47.5x41 5x56cm (carton)
● dimension of aviation box: 87x50x72cm (2 sets of upside down)
