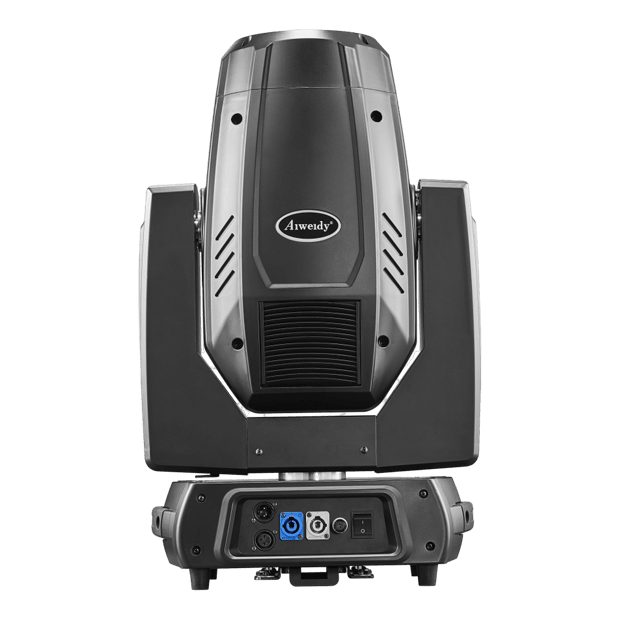

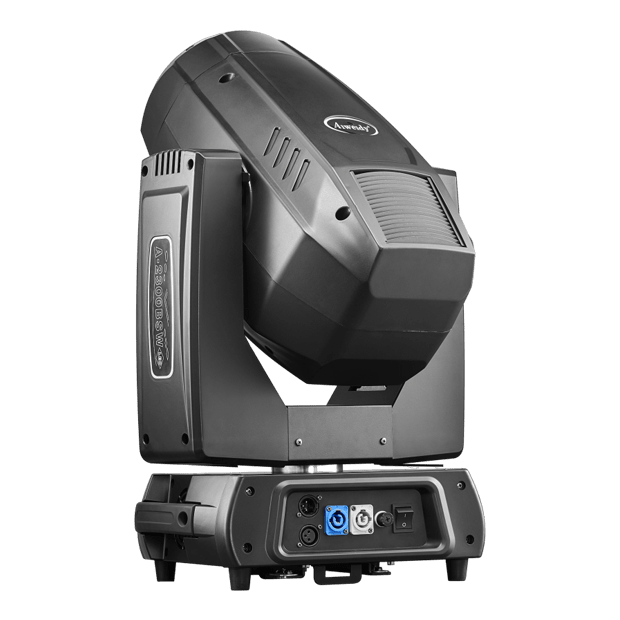

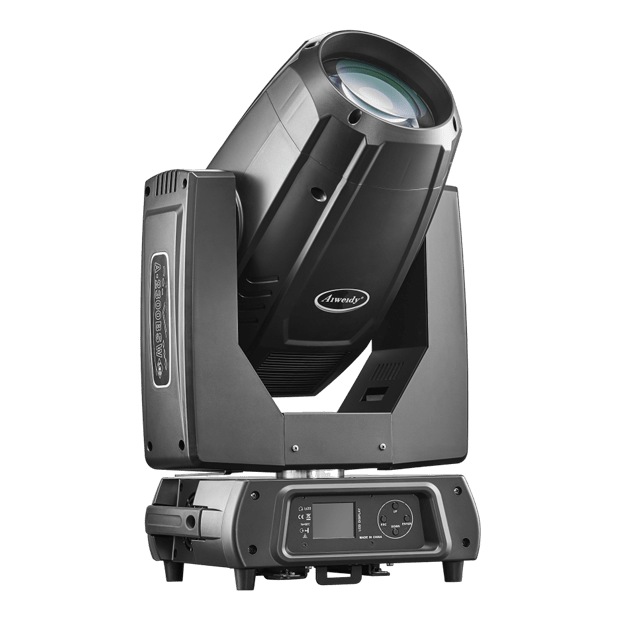

This is a beam light that combines beam, pattern and wash functions to meet the diverse needs of stage lighting. It adopts advanced LED light source, which has the advantages of high efficiency and energy saving. Its CMY infinite color mixing system can achieve smooth color transition and bring rich and diverse color performance effects. Combined with the long life and low energy consumption characteristics of LED light source, this beam light not only has excellent performance, but also has energy saving and environmental protection. It is a professional stage lighting equipment with extremely high-cost performance, suitable for a variety of performances and activities.
Input Voltage
AC110-240V, 50/60Hz
Whole Lamp Power
420W
Light Source
300W white module LED
Optical Aperture
150mm
Color Temperature
8000K
LED Expected Lifespan
＞20,000 hours
1
Horizontal 540° 2.5 sec, Vertical 270° 1.4 sec (16-bit)
2
With automatic error correction reset function
3
It adopts a noiseless three-phase motor, optocoupler, and Hall positioning, operates smoothly and has accurate positioning
1
CMY system + CTO (3200K) + CTB (5600K)
1 Color Wheel
11 colors + blank, with half color and rainbow effects
1 Rotating Gobo Wheel
7 plug-in rotating gobos + blank, with pattern shaking and water effects. The entire gobo wheel and each individual glass gobo can rotate at variable speeds in both directions
1 Fixed Gobo Wheel
11 fixed gobos + blank, with pattern shaking and water effects. The entire gobo wheel can rotate at variable speeds in both directions
Zoom Range
3.5°- 30°
With autofocus function
One 8-facet prism, can rotate at variable speeds in both directions
1 mist lens
0-100% electronic linear dimming, smooth and flicker-free
Electronic strobe 1--25 times/HZ, speed adjustable
2 Channel Modes
21/25 CH
Control Modes
DMX512/Master-Slave/Autorun/RDM
Standard 3-pin XLR signal interface
1
LCD color screen + rotary encoder, LED temperature display, bilingual in Chinese and English
1
With electronic temperature control overheating protection
2
Axial fans are used to enhance ventilation and cooling
1
IP20
Product Size
395 x 288 x 642 mm
Product Net Weight
23.25 kgs
